HNC348N-XDLUA/2.8

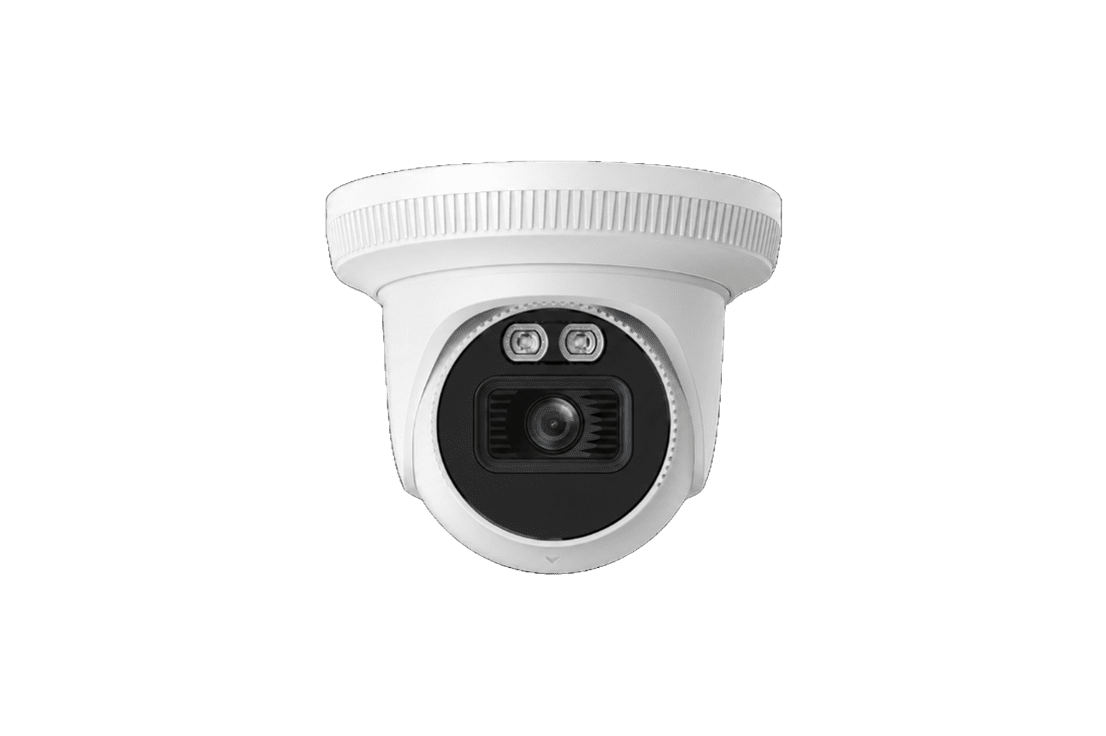

8MP 24/7 Color Turret Camera
- 8MP Turret Housing
- 2.8 mm Lens
- AI-ISP ultra low light 24/7 Color
- Video Content Analytics: Line Crossing and Intrusion
- IP67 Rating
Description
Description
| Specifications | ||
|---|---|---|
| Model Number | HNC348N-XDLUA/2.8 | |
| Image Sensor | 1/1.8-in. 4MP Progressive CMOS | |
| Maximum Resolution | 3840 x 2160 | |
| Minimum Illumination | Color: 0.0003 Lux at F1.0 | |
| Number of Illuminators | 2 White-Light LED | |
| Illuminator Control | Â Automatic, Manual | |
| Maximum Illumination Distance | White Light: Up to 30 m (100 ft) | |
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
|
| Installation Angle | Pan: 0° to 360° Tilt: 0° to 78° Rotation: 0° to 360° |
|
| S/N Ratio | > 56 dB | |
| Lens | ||
| Iris Type | Fixed | |
| Lens Type | Fixed | |
| Focal Length | Â 2.8 mm | |
| Maximum Aperture | F1.0 | |
| Field of View | Horizontal: 110° Vertical: 59° Diagonal: 131° |
|
| Close Focus Range | 2.8 m (9.2 ft) | |
| DORI Distance | Detect: 84.0 m (275.6 ft) Observe: 33.6 m (110.2 ft) Recognize: 16.8 m (55.1 ft) Identify: 8.4 m (27.6 ft) |
|
| Video | ||
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
|
| Standard Codec | Supported | |
| Stream Capability | Two (2) | |
| Resolution | 8MP (3840 x 2160), 6MP (3072 x 2048), 5MP (3072 x 1728), 5MP (2880 x 1620), 4MP (2688 x 1520), 3MP (2048 x 1536), 3MP(2304 x 1296), 1080p (1920 x 1080), 1.3MP (1280 x 960), 720p (1280 x 720), D1 (704 x 480), VGA (640 x 480), CIF (352 x 240) |
|
| Maximum Frame Rate | Main Stream: 3840 x 2160 at 20 fps Sub Stream 1: D1 at 30 fps |
|
| Video Bit Rate | H.264: 3 kbps to 8,192 kbps H.265: 3 kbps to 8,192 kbps |
|
| Bit Rate Control | CBR/VBR | |
| Day/Night | Automatic (ICR), Color, Black and White | |
| Noise Reduction | 3D NR | |
| Light Balancing | Wide Dynamic Range (120 dB) | |
| Image Angle | 0°/90°/180°/270° (90°/270° Available for 2688 × 1520 Resolution or Lower) |
|
| Mirror Rotation | Supported | |
| Region of Interest | Four (4) Zones | |
| Privacy Masking | Four (4) Zones | |
| Analytics | ||
| Video Content Analytics | Line Crossing, Intrusion | |
| Smart Motion Detection | Supported with Alarms for Vehicles and Humans |
|
| Audio | ||
| Compression | G.711a, G.711Mu, PCM | |
| Interface | Input: Built-In Microphone | |
| Alarm | ||
| Event | Line Crossing, Intrusion, Motion Detection, Smart Motion, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP Conflict, Voltage Detection, Security Warning |
|
| Network | ||
| Interface | RJ-45 (10/100 Base-T) | |
| Protocol | Pv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
|
| Interoperability | ONVIF (Profile S/G/T), CGI | |
| Browser | Chrome, Firefox, Edge | |
| Client | ||
| Storage | FTP, SFTP, Micro SD Card (Max. 256 GB) | |
| Electrical | ||
| Power Supply | 12 VDC, PoE (802.3af) | |
| Power Consumption | 12 VDC • Maximum: 5.6 W • Normal: 2.4 W PoE • Maximum: 6.4 W • Normal: 3.0 W |
|
| Construction | ||
| Net Weight | 0.5 kg (1.2 lb) | |
| Gross Weight | 0.7 kg (1.6 lb) | |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
|
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) | |
| Protection Ratings | IP67 | |
| Product Dimensions (L x W x H) |
Φ122.0 mm x 111.8 mm (Φ4.8 in. x 4.4 in.) | |
| Material | Metal | |
| Certifications and Compliance | ||
| Certifications | FCC, IC | |
| Compliance | NDAA | |
| Mounts | NDAA | |
| Wall Mount | HTH-272ZJ-120B,HTH-272ZJ-W01 | |
| Electrical Box | HTH-280ZJ-J02,HTH-280ZJ-CJ11,HTH-280ZJ-CJ11B | |
| Pole | HTH-271ZJ-120 |
