HNP124NP-LUR/25X

4MP Network 25X Deterrent PTZ + Dual-Stitched Lens Camera

  • 4MP 25x PTZ With 2 x 4MP Dual-stitched 2.8mm Lens Camera
  • Deterrent With Red/Blue Lights and Built-In Speaker
  • Dual-illumination — IR and White-Light LEDs
  • VCA+: Line Crossing, Intrusion, Loitering Detection, Parking Detection
  • Smart Tracking, Smart Focus
  • IP66
Download Software
Download Manual
Download Specs
Print Friendly, PDF & Email

Description

Description









Specifications
Model Number HNP124NP-LUR/25X
Zoom 25X
Image Sensor Panoramic: 1/2.7-in. Progressive CMOSPTZ: 1/2.8-in. Progressive CMOS
Maximum Resolution Panoramic: 4096 × 1860PTZ: 2560 × 1440
Minimum Illumination Panoramic• Color: 0.005 Lux at F1.4• Black/White: 0.0005 Lux at F1.4• 0 Lux With Illuminators OnPTZ• Color: 0.005 Lux at F1.6• Black/White: 0.0005 Lux at F1.6• 0 Lux With Illuminators On
Number of Illuminators Panoramic: Two (2) IR LEDs, Two (2)White-Light LEDsPTZ: Two (2) IR LEDs, Two (2) White-Light LEDs
Illuminator Control  Automatic, Manual
Maximum Illumination Distance Panoramic• IR: 30.0 m (98.4 ft)• White Light: 30.0 m (98.4 ft)PTZ• IR: 100.0 m (328.1 ft)• White Light: 40.0 m (131.2 ft)
Illuminator Control Panoramic: Manual, Automatic, OffPTZ: Zoom Priority, Manual, Automatic,Off
Electronic Shutter Speed Automatic, Manual
1/3 s to 1/300,000 s
Control Speed Manual
Power Off Memory Supported
S/N Ratio > 55 dB
Lens
Focal Length Panoramic: 2.8 mmPTZ: 5.0 mm to 125.0 mm
Maximum Aperture Panoramic: F1.4PTZ: F1.6 to F3.6
Field of View Panoramic• Horizontal: 180.0°• Vertical: 86.0°PTZ• Horizontal: 51.9° to 3.0°• Vertical: 39.7° to 2.2°• Diagonal: 63.1° to 3.7°
Close Focus Range Panoramic: 0.6 m (2.0 ft)PTZ: 0.1 m to 0.5 m (0.3 ft to 1.6 ft)
DORI Distance Panoramic• Detect: 55.5 m (182. 1 ft)• Observe: 22.0 m (72.2 ft)• Recognize: 11.0 m (36.1 ft)• Identify: 5.3 m (17.4 ft)PTZ• Detect: 99.9 m to 2549.5 m (327.8 ftto 8364.5 ft)• Observe: 39.5 m to 1000.0 m (129.6 ftto 3280.8 ft)• Recognize: 19.5 m to 495.5 m (64.0 ftto 1625.7 ft)• Identify: 9.8 m to 249.5 m (32.2 ft to818.6 ft)Pan/Tilt/ZoomRangePan: 0° to 360° EndlessTilt: -15° to 90°Auto Flip: 180°Pan Speed Manual Control: 0.1°/s to 180°/sPreset: 180°/sTilt Speed Manual Control: 0.1°/s to 90°/sPreset: 90°/sPreset 300Tour 8 (Up to 32 Presets per Tour)Pattern 5Scan 5Scheduled Modes Preset, Pattern, Tour, ScanPreset Freezing Freezes Images Between Presets3D Positioning Automatically Pans, Tilts, and Zooms to
Pan/Tilt/Zoom
Range Pan: 0° to 360° EndlessTilt: -15° to 90°Auto Flip: 180°
Pan Speed Manual Control: 0.1°/s to 180°/sPreset: 180°/s
Tilt Speed Manual Control: 0.1°/s to 90°/sPreset: 90°/s
Preset 300
Tour 8 (Up to 32 Presets per Tour)
Pattern 5
Scan 5
Scheduled Modes Preset, Pattern, Tour, Scan
Preset Freezing Freezes Images Between Presets
3D Positioning Automatically Pans, Tilts, and Zooms toa Selected Area
Video
Compression Panoramic: Smart Encoding H.265,H.265, Smart Encoding H.264, H.264,MJPEG (Sub Stream 1 Only)PTZ: Smart Encoding H.265, H.265,Smart Encoding H.264, H.264, MJPEG(Sub Stream 1 Only)
Standard Codec Supported
Stream Capability Three (3)
Resolution Panoramic: 8MP (4096 × 1860), 2MP(2048 × 928), 1080p(1920 × 1080), 720p(1280 × 720), 1024 × 448, D1 (704× 576/704 × 480), VGA (640 × 480), CIF(352 × 288/352 ×240)PTZ: 4MP (2560 × 1440), 3MP (2304 ×1296), 1080p (1920 × 1080), 1.3MP (1280× 960), 720p (1280 × 720), D1 (704 ×480), VGA (640 × 480), CIF (352 × 240)
Maximum Frame Rate Panoramic• Main Stream: 4096 × 1860 at 30 fps• Sub Stream 1: 1024 × 448/D1/VGA/CIFat 30 fps• Sub Stream 2: 2048 × 928/1080p/1.3M/720p at 30 fpsPTZ• Main Stream:4MP/3MP/1080p/1.3MP/720p at 30 fps• Sub Stream 1: D1/VGA/CIF at 30 fps• Sub Stream 2: 1080p/1.3MP/720p at30 fps
Video Bit Rate Panoramic• H.265: 51 kbps to 13,312 kbps• H.264: 128 kbps to 16,384 kbpsPTZ• H.265: 38 kbps to 10,240 kbps• H.264: 96 kbps to 16,384 kbps
Bit Rate Control CBR/VBR
Day/Night Auto (ICR), Color, Black and White
Noise Reduction 2D NR, 3D NR
Light Balancing Wide Dynamic Range (120 dB), BLC, HLC
Image Rotation 180°
Image Stabilization Electronic
Defog Electronic
Region of Interest Eight (8) Regions
Analytics
Video Content Analytics+ Line Crossing, Intrusion, LoiteringDetection, Parking Detection, CrossingVirtual Fence, Abandoned/MissingObject, Aggregate Detection, Vehicle/Human Alarm Classification, LinkageTracking
Smart Motion Detection Supported with Alarms for Vehicles andHumans
Deterrent Built-In Speaker and Flashing Red andBlue Lights
Smart Tracking Automatically Tracks a Target in Motionfor an Allotted Amount of time or Untilthe Object Exits the Scene
Audio
Compression G.711a, G.711Mu, PCM
Interface Input: One (1) ChannelOutput: Built-In Speaker and One (1)Channel
Alarm
Event Motion/Tampering Detection, Offline,IP Conflict, No SD Card, Disk Full, SDCard Error, Scene Changing
Interface Input: Two (2) ChannelOutput: One (1) Channel
Linkage Capture, Record, Send Email, Alarm
Digital Output, Audio, Warning Light
Network
Interface RJ-45 (10/100 Base-T)
Protocol HTTP, HTTPS, TCP/IP, IPv4, RTSP, SMTP,NTP, DHCP, DNS, DDNS, IPv6, 802.1x,SSL, QoS, FTP, UPnP, SNMP, ARP, RTCP,RTP, PPPoE, RTMP, Bonjour, NFS
Interoperability ONVIF (Profile S/G/T), API, SDK
Browser Chrome, Firefox, Edge, Safari
Client
Storage FTP/SFTP, NAS, Micro SD Card (Max.512 GB)
Electrical
Power Supply 12 VDC (3 A ± 10%), PoE+ (802.3at)
Power Consumption 25W Max.
Construction
Net Weight 3.1 kg (6.8 lb)
Gross Weight 4.6 kg (10.1 lb)
Operating Temperature -40 °C to 65 °C (-22°F to 149°F)< 95% RH (Non-Condensing)
Storage Temperature -40 °C to 70 °C (-40 °F to 158 °F)
Protection Ratings IP66

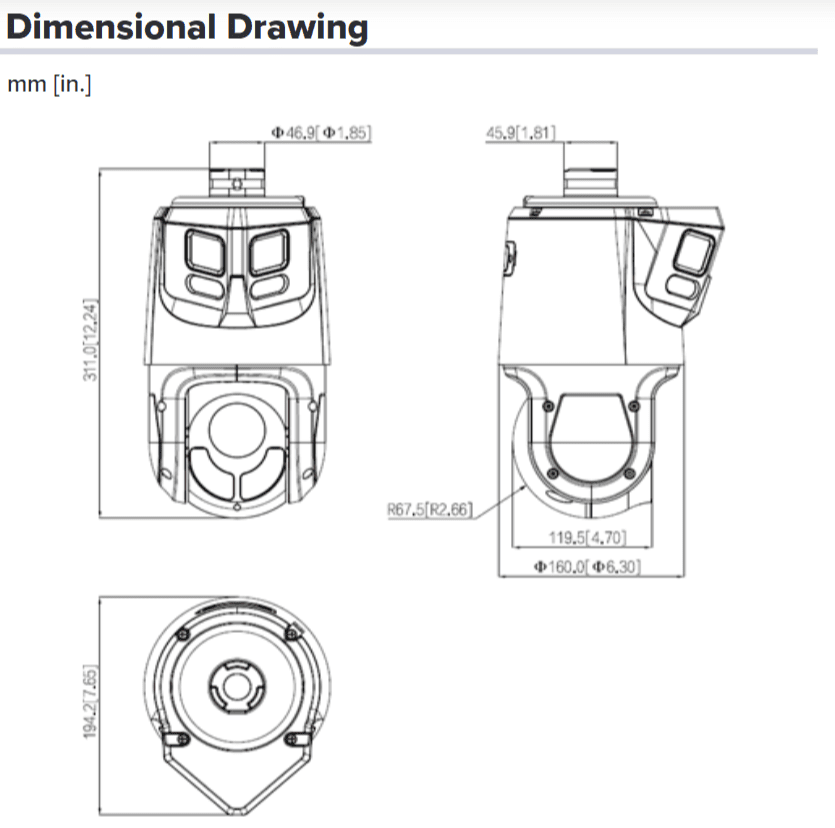

Product Dimensions(L x W x H) 194.2 mm × 160.0 mm × 311.0 mm(7.7 in. × 6.3 in. × 12.2 in.)
Material Metal
Certifications and Compliance
Certifications FCC, IC
Compliance NDAA
Mounts
Wall Mounts HTH-602ZJ-W02
Pole Mounts HTH-661ZJ-E02
Compliance HTH-660ZJ-R01
