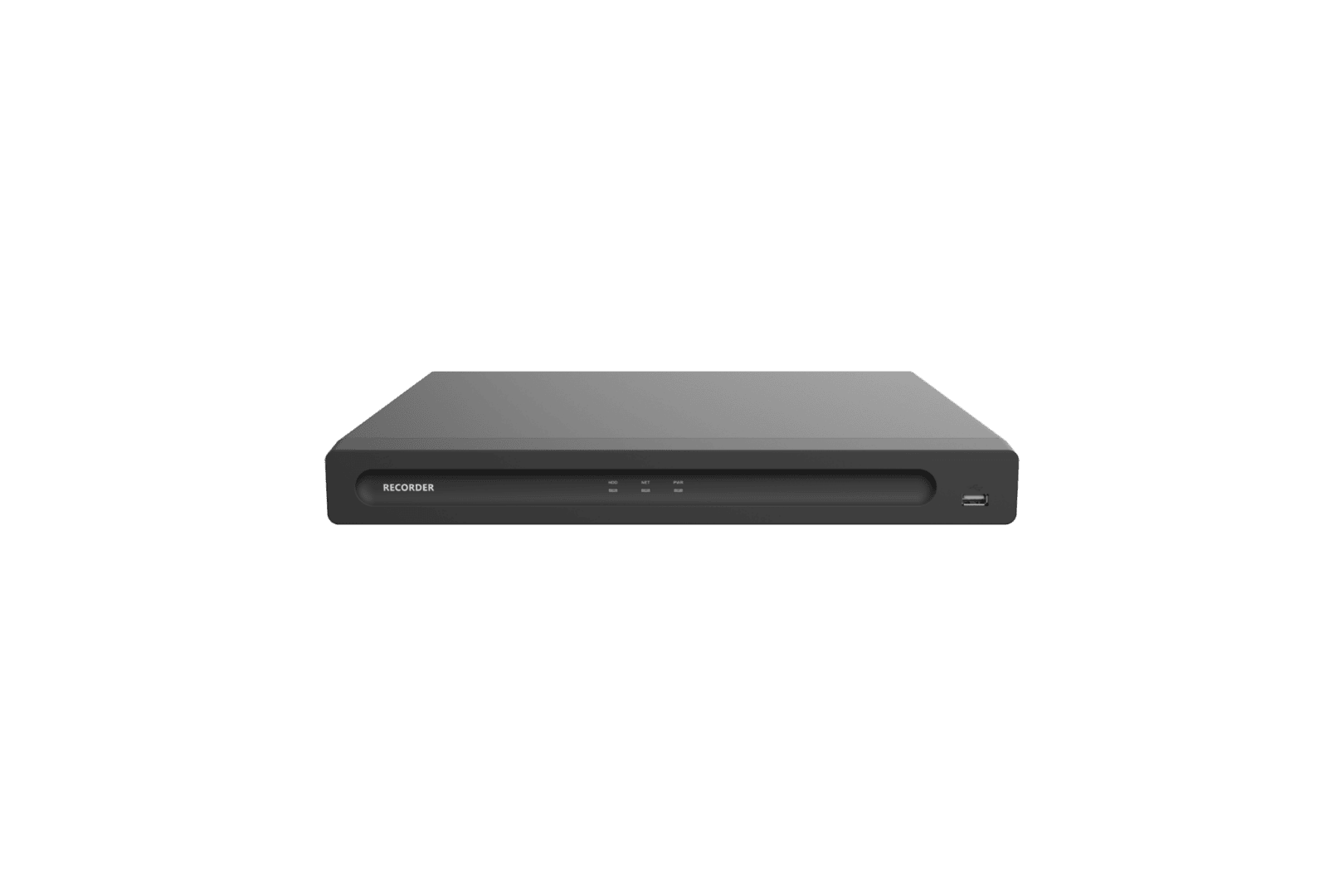

HNR32NP8-8
8 Channel & 8 POE Network Video Recorder
- 265+/H.264+/H.265/H.264 Video Compression
- Up to 12 MP recording resolution
- 8 Independent PoE Network Ports
- Independent HDMI (4K, 3840 × 2160) and VGA Output
- AI by Camera: Face Detection, Video Content Analysis, Intelligent Motion Detection, and License Plate Recognition
- AI by NVR: Intelligent Motion Detection
- Supports remote configuration and management of network cameras, such as parameter configuration, information retrieval, and batch upgrading
- Compatible with Third-Party Network Cameras
Description
Description
| Specifications | ||
|---|---|---|
| Model Number | HNR32NP8-8 | |
| Video | ||
| Video Input | Eight (8) Channels | |
| Recording Resolutions | 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1; VGA; CIF | |
| Output Resolutions | HDMI: 4K (3840 × 2160), 1920 × 1080, 1280 x 1024, 1280 x 720 VGA: 1920 × 1080, 1280 x 1024, 1280 x 720 |
|
| Live View/Playback Resolutions |
12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1; VGA; CIF | |
| Decoding | ||
| Format | H.265, H.264, H.264H, H.264B, MJPEG | |
| Capability | AI ON: 1-ch@12 MP (30 fps)/1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/7-ch@1080p (30 fps)
AI OFF: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps) |
|
| Synchronous Playback | 1, 4 Views | |
| Supported Analytics by Camera | ||
| Intelligent Motion Detection | 6-ch, iMD by Camera
4-ch, iMD by NVR |
|
| Video Content Analytics (VCA) | (6) Channels | |
| Face Detection | (6) Channels | |
| License Plate Recognition | (6) Channels | |
| Smart Search | Search by Target Classification, Pictures by Channel, Time, and Event Type |
|
| Interface | ||
| SATA | One (2) Port | |
| HDD | Up to 20 TB per HDD | |
| Network | One (1) Port (RJ-45 Self-Adaptive Ether– net (10/100/1000 Mbps)) |
|
| PoE | Eight (8) Ports (RJ-45 Self-Adaptive Ethernet (10/100 Mbps)) |
|
| USB | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 | |
| Alarm | Input: Four (4) Channels Output: Two (2) Channels |
|
| Audio | Input: One (1) RCA Channel Output: One (1) RCA Channel |
|
| Network | ||
| Bandwidth | 160 Mbps (80 Mbps with AI enabled)
80 Mbps (60 Mbps with AI enabled) |
|
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
|
| Interoperability | ONVIF, RTSP | |
| PoE Standard | IEEE 802.3 af/at | |
| Client | NeoViewer APP | |
| Electrical | ||
| Power Supply | 100-240 V, 47-63 Hz. 3.5 A | |
| Power Consumption | < 10 W (HDD not included,)
Total output power of PoE is 130 W, the maximum output power of a single port is 25.5 W |
|
| Construction | ||
| Weight | 2.5 kg (5.5 lb) Without HDD | |
| Operating Temperature | -10 °C to 55 °C (10 °F to 131 °F) 10% to 93% |
|
| Dimensions (W x L x H) | 372.0 mm × 325.8 mm × 43.7 mm (14.7 in. × 12.8 in. × 1.7 in.) |
|
| Certifications and Compliance | ||
| Certifications | FCC | |
| Compliance | NDAA |
