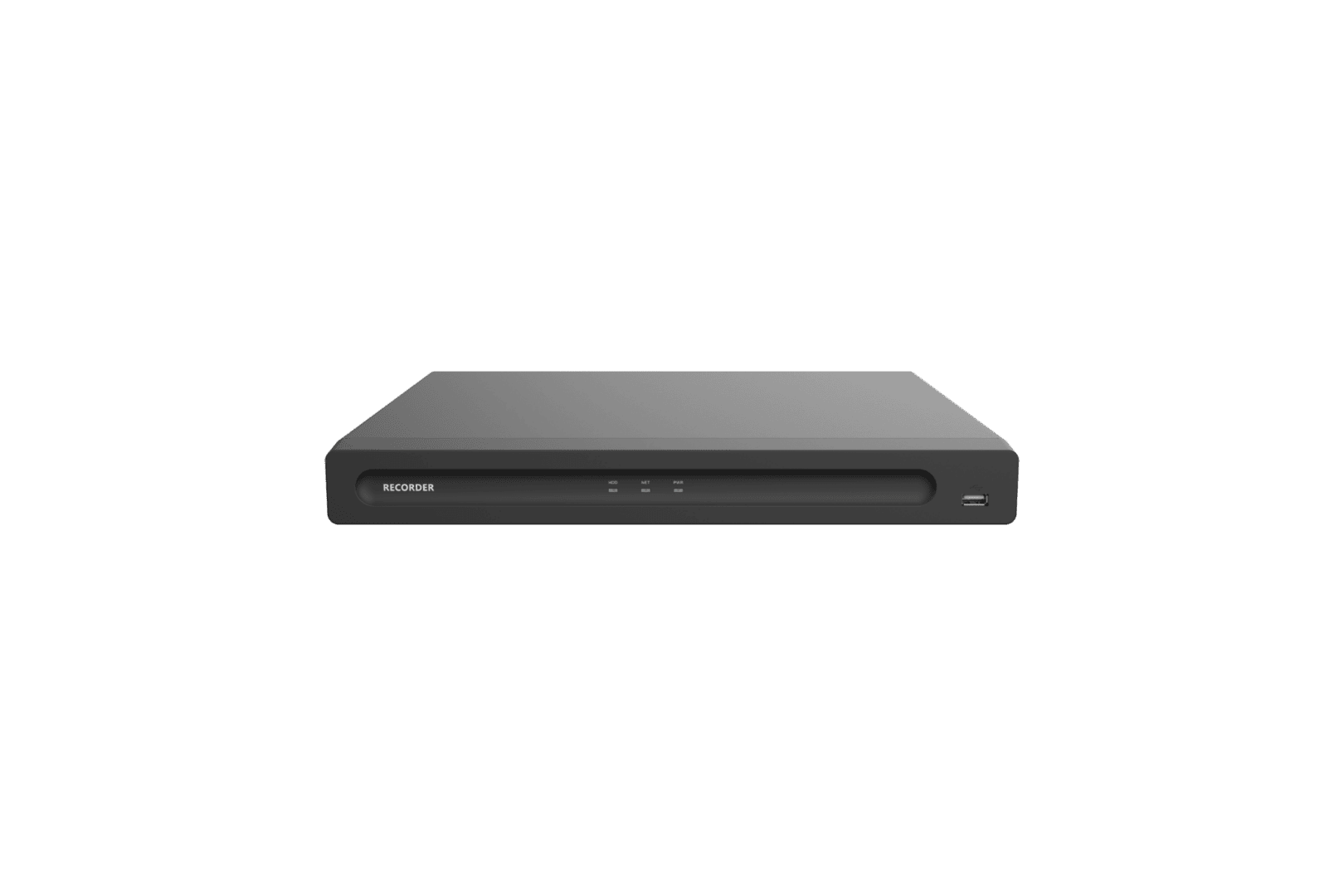

HNR52NP24-32
32 Channel & 24 POE Network Video Recorder
- 8K 32-Channel NVR with 24 PoE Ports
- Up to 400 Mbps Recording Bandwidth (AI Off) / 220 Mbps (AI On)
- Third-party network cameras supported
- Supports 2 Channels at 32MP or 16 Channels at 4MP Decoding
- 1.5U Form Factor with 4 SATA, Audio, and Alarm Support
- Storage: Supports up to 64TB total storage (4x 16TB HDD), not included.
Description
Description
| Specifications | ||
|---|---|---|
| Model Number | HNR52NP24-32 | |
| Video | ||
| Video Input | 32 Channels | |
| Recording Resolutions | 32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
|
| Output Resolutions | HDMI (2CH): 4K (3840 × 2160), 1920 × 1080, 1280 x 1024 VGA (2CH): 1920 × 1080, 1280 x 1024 HDMI1/HDMI2 Independent Output |
|
| Live View/Playback Resolutions |
32MP, 16MP, 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080p, 720p, D1, VGA, CIF |
|
| Decoding | ||
| Format | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG |
|
| Capability | AI On • 1CH at 32MP (30 fps) • 2CH at 16MP (30 fps) • 4CH at 8MP (30 fps) • 12CH at 4MP (30 fps) • 24CH at 1080p (30 fps) AI Off • 2CH at 32MP (30 fps) • 4CH at 16MP (30 fps) • 8CH at 8MP (30 fps) • 16CH at 4MP (30 fps) • 32CH at 1080p (30 fps) |
|
| Live View Window Division | 1, 4, 9, 16, 25, 36 Views | |
| Auxiliary Port Window Division | 1, 4, 8, 9, 16 Views | |
| Synchronous Playback | 1, 4, 8, 9, 16 views | |
| Supported Analytics by Camera | ||
| Intelligent Motion Detection | Camera: 16CH NVR: 8CH |
|
| Video Content Analytics (VCA) | Camera: 16CH NVR: 4CH 10 Rules per Channel |
|
| Face Recognition | Face Capture and Recognition: 2CH Face Picture Comparison Alarm From Camera: 16CH Up to 20 Face Picture Libraries (Max. 20,000 Pictures Total) |
|
| License Plate Recognition | 8CH (LPR Camera Required) Two (2) Block List, Two (2) Allow List Up to 20,000 Plate Numbers |
|
| Smart Search | 16CH (Must be Supported by Camera) | |
| Interface | ||
| SATA | Four (4) Ports | |
| HDD | Up to 16TB per HDD | |
| Network | One (1) Port (RJ-45 Self-Adaptive Ether– net (10/100/1000 Mbps)) |
|
| PoE | 16 Ports (RJ-45 Self-Adaptive Ethernet (10/100 Mbps)) |
|
| USB | Front Panel: 1 x USB 2.0 Rear Panel: 2 x USB 3.0 |
|
| Alarm | Input: 16 Channels Output: 6 Channels |
|
| Audio | Input: 1-Channel RCA Input Output: 2-Channel RCA Output |
|
| Network | ||
| Bandwidth | AI On • Incoming: 220 Mbps • Outgoing: 220 Mbps AI Off • Incoming: 400 Mbps • Outgoing: 400 Mbps |
|
| Protocol | HTTP, HTTPS, TCP/IP, IPv4, IPv6, UPnP, SNMP, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS |
|
| Interoperability | ONVIF, RTSP | |
| PoE Standard | IEEE 802.3 af/at | |
| Client | ||
| Electrical | ||
| Power Supply | 100-240 V, 47-63 Hz. 3.5 A | |
| Power Consumption | < 13 W (HDD Not Included) PoE: 210 W (Max. Output for Single Port: 25.5 W) |
|
| Construction | ||
| Weight | 4.7 kg (10.4 lb) Without HDD | |
| Operating Temperature | -10 °C to 55 °C (10 °F to 131 °F) 10% to 93% |
|
| Dimensions (W x L x H) | 442.0 × 414.1 × 68.0 mm (17.4 × 16.3 × 2.7 in.) |
|
| Certifications and Compliance | ||
| Certifications | FCC | |
| Compliance | NDAA |
