HNC348NP-XDLUSLR/2.8
4MP Turret Camera
- 180° Stitched Multi-Sensor
- 2.8 mm Lens
- Dual-Illumination — IR and White-Light LEDs
- Video Content Analytics: Line Crossing and Intrusion
- IP67 Rating
Description
Description
| Specifications | ||
|---|---|---|
| Model Number | HNC348NP-XDLUSLR/2.8 | |
| Image Sensor | 1/2.7-in. 4MP Progressive CMOS | |
| Maximum Resolution | 4096 × 1860 | |
| Minimum Illumination | Color: 0.002 Lux at F1.4 Black/White: 0.0002 Lux at F1.4 0 Lux With IR Light On |
|
| Number of Illuminators | IR: Two (2) White Light: Two (2) |
|
| Illuminator Control | Automatic, Manual | |
| Maximum Illumination Distance | IR: Up to 25.0 m (82.0 ft) White Light: Up to 20.0 m (66.0 ft) |
|
| Electronic Shutter Speed | Automatic, Manual 1/3 s to 1/100,000 s |
|
| Installation Angle | Pan: 0° to 360° Tilt: 0° to 77° Rotation: 0° to 360° |
|
| Lens | ||
| Iris Type | Fixed | |
| Lens Type | Fixed | |
| Focal Length | 2.8 mm | |
| Maximum Aperture | F1.4 | |
| Field of View | Horizontal: 180° Vertical: 86 |
|
| Close Focus Range | 0.8 m (2.6 ft) | |
| DORI Distance | Detect: 50.6 m (166.0 ft) Observe: 20.2 m (66.3 ft) Recognize: 10.1 m (33.1 ft) Identify: 5.1 m (16.7 ft) |
|
| Video | ||
| Compression | Smart Encoding H.265+, H.265, Smart Encoding H.264+, H.264, MJPEG (Sub Stream Only) |
|
| Standard Codec | Supported | |
| Stream Capability | Three (3) Streams | |
| Resolution | 8MP (4096 × 1860), 6MP (3632 x 1632), 4MP (3040 x 1368), 1.6MP (1920 x 860), 1200 x 530, 960 x 432 |
|
| Maximum Frame Rate | Main Stream: 4096 × 1860 at 20 fps Sub Stream 1: 1200 × 530 at 20 fps Sub Stream 2: 1920 × 1080 at 20 fps |
|
| Video Bit Rate | H.264: 6 to 16384 kbps H.265: 6 to 16384 kbps |
|
| Bit Rate Control | CBR/VBR | |
| Day/Night | Automatic (ICR), Color, Black and White | |
| Light Balancing | Wide Dynamic Range (120 dB) | |
| Noise Reduction | 3D NR | |
| Day/Night | Automatic (ICR), Color, Black and White | |
| Image Angle | 0°/90°/180°/270° | |
| Mirror Rotation | Supported | |
| Region of Interest | Four (4) Zones | |
| Privacy Masking | Four (4) Zones | |
| Analytics | ||
| Video Content Analytics | Line Crossing, Intrusion, Loitering Detection |
|
| Intelligent Motion Detection | Supported with Alarms for Vehicles and Humans |
|
| Smart Sense | Electronically Zoom and Track Multiple Humans/Vehicles and Trigger Alarms Automatically |
|
| Audio | ||
| Compression | G.711a, G.711Mu, PCM | |
| Interface | Input: Built-in Dual Microphones and One (1) RCA Port Output: Built-in Speaker and One (1) RCA Port |
|
| Alarm | ||
| Event | No SD Card, Disk Full, SD Card Error, Offline, IP Conflict, Illegal Access, Motion Detection, Video Tampering, Voltage Detection, Security Exception, Line Crossing, Intrusion, Scene Changing, Audio Detection, External Alarm |
|
| Interface | Input: One (1) Channel (3V-5VDC, 5 mA) Output: One (1) Channel (12 VDC, 300 mA) |
|
| Network | ||
| Interface | RJ-45 (10/100 Base-T) | |
| Protocol | Pv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, UPnP, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS |
|
| Interoperability | ONVIF (Profile S/G/T), CGI | |
| Browser | Chrome, Firefox, Edge | |
| Client | ||
| Storage | FTP, SFTP, Micro SD Card (Max. 256 GB) | |
| Electrical | ||
| Power Supply | 12 VDC, PoE (802.3af) | |
| Power Consumption | 12 VDC • Maximum: 8.7 W • Normal: 4.0 W PoE • Maximum: 10.9 W • Normal: 5.0 W |
|
| Construction | ||
| Net Weight | 1.0 kg (2.2 lb) | |
| Gross Weight | 1.3 kg (2.8 lb) | |
| Operating Temperature | -40 to 60 °C (-40 to 140 °F) < 95% RH (Non-Condensing) |
|
| Storage Temperature | -40 to 60 °C (-40 to 140 °F) | |
| Protection Ratings | IP67 | |
| Product Dimensions (L x W x H) |
140.6 mm × Φ 142.5 mm (5.5 in. × Φ 5.6 in.) |
|
| Material | Metal | |
| Certifications and Compliance | ||
| Certifications | FCC, IC | |
| Compliance | NDAA | |
| Mounts | ||

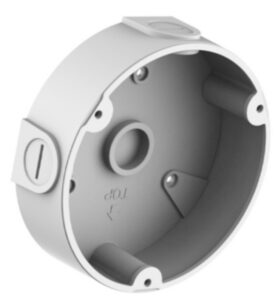

| Electrical Box | HTH-280ZJ-J04 | |
| Wall Mount | HTH-273ZJ-140B | |
| Pole | HTH-271ZJ-140 |
